- 4mm and 5mm winch wires are supplied complete with galvanised thimble and stainless steel ‘S’ hook.
- 6mm winch wires are supplied with a galvanised thimble and forged safety hook.
You are here:

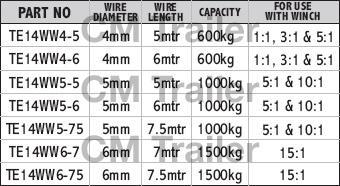

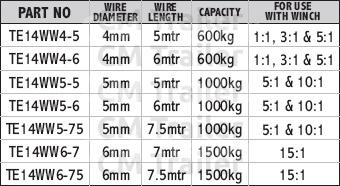

PART NO |
WIRE DIAMETER |
WIRE LENGTH |
CAPACITY |
FOR USE WITH WINCH |
TE14WW4-6 |
4mm |
6mtr |
600kg |
1:1, 3:1 & 5:1 |
TE14WW5-6 |
5mm |
6mtr |
1000kg |
5:1 |
TE14WW5-75 |
5mm |
8mtr |
1000kg |
10:1 |
TE14WW6-75* |
6mm |
8mtr |
1500kg |
15: |

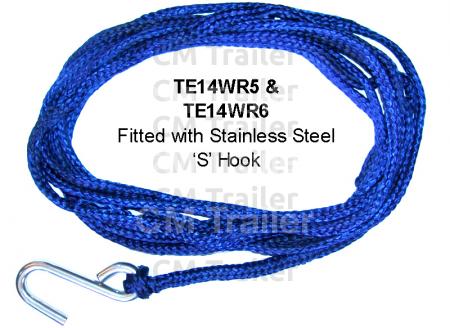

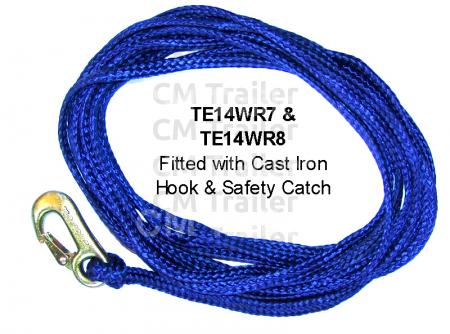

CM manual winch ropes are made from a special high strength synthetic material. No more rusting wire or metal splinters in the hands, these ropes are easy to fit.
PART NO |
ROPE LENGTH |
CAPACITY |
FOR USE WITH WINCH |
TE14WR5 |
5mtr |
1000kg |
1:1 & 3:1 |
TE14WR6 |
6mtr |
1500kg |
5:1 |
TE14WR7 |
7mtr |
1500kg |
10:1 |
TE14WR8 |
8mtr |
2500kg |
15:1 |
PART NO |
WEB WIDTH |
WEB LENGTH |
CAPACITY |
TE14WS25-3 |
25mm |
3mtr |
1500kg |
TE14WS25-4 |
25mm |
4mtr |
1500kg |
TE14WS25-5 |
25mm |
5mtr |
1500kg |
TE14WS25-6 |
25mm |
6mtr |
1500kg |
TE14WS50-3 |
50mm |
3mtr |
1500kg |
TE14WS50-4 |
50mm |
4mtr |
1500kg |
TE14WS50-5 |
50mm |
5mtr |
1500kg |
TE14WS50-6 |
50mm |
6mtr |
1500kg |
