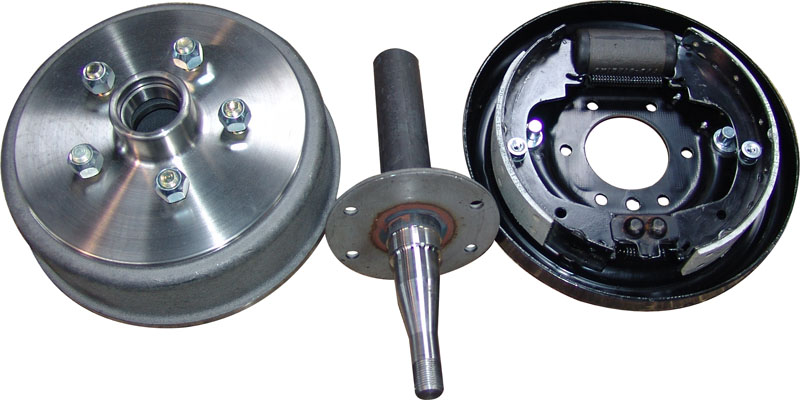

CM hydraulic drum brakes are suitable for use on industrial and domestic trailers, horse floats and caravans and are an economic and efficient means of braking.
You are here:
CM hydraulic drum brakes are suitable for use on industrial and domestic trailers, horse floats and caravans and are an economic and efficient means of braking.
PART NO |
CAPACITY PER PAIR |
MECHANICAL PARK BRAKE |
BRAKES |
A |
B |
C |
D |
PCD |
TE2DRH1500 |
1500kg |
No |
9” x 1.75” |
79mm |
260mm |
61mm |
39mm dia |
100mm – 190mm |
TE2DRH1500F |
1500kg |
No |
9” x 1.75” |
79mm |
260mm |
61mm |
39mm dia |
4.50” x 5 x ½” |
TE2DRH2750P■ |
2750kg |
Yes |
12” x 2” |
122mm |
350mm |
90mm |
63.60mm (2.50”) |
5.50 x 6 x 1/2” |
■ Only suitable for trailers under 3500kg gross laden weight and not suitable for COF class TC trailers. CM can supply drum brakes suitable for COF trailers (over 3500kg gross laden weight). Please contact us for a quote.
