Weld-on type to DIN 74054 specifications.
You are here:
Weld-on type to DIN 74054 specifications.
Weld-on type to DIN 74053 specifications.
For on-road use.
Weld-on type to DIN 17.100 50 specifications.
For off-road use only.
Weld-on type.
For off-road use only.
Weld-on type.
For off-road use only.
Weld-on type.
For off-road use only.

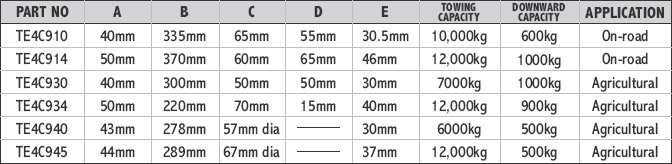

PART NO |
A |
B |
C |
D |
E |
TOWING CAPACITY |
DOWNWARD CAPACITY |
APPLICATION |
TE4C910 |
40mm |
335mm |
65mm |
55mm |
30.5mm |
10,000kg |
600kg |
On-road |

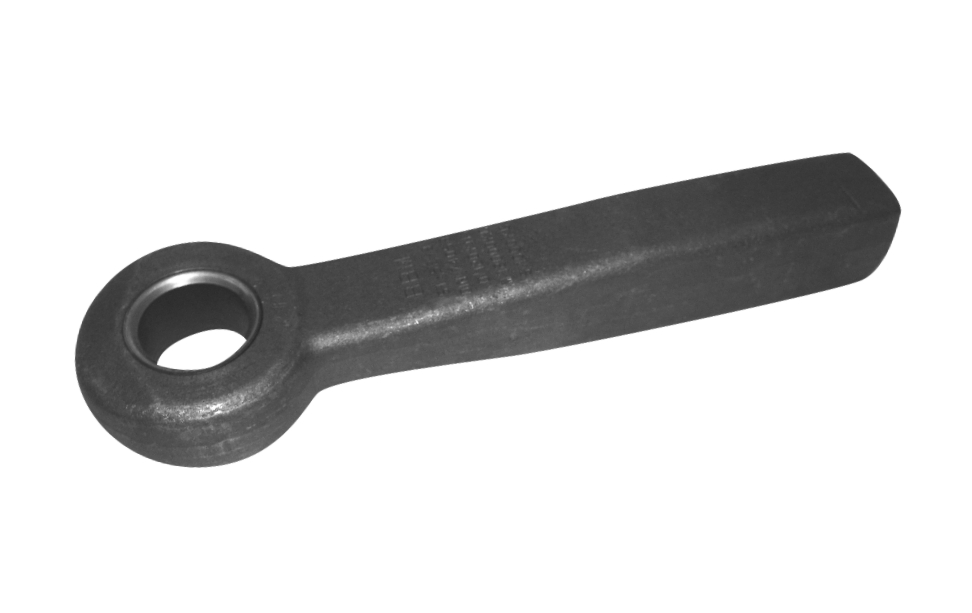

TE4C914 |
50mm |
370mm |
60mm |
65mm |
46mm |
12,000kg |
1000kg |
On-road |

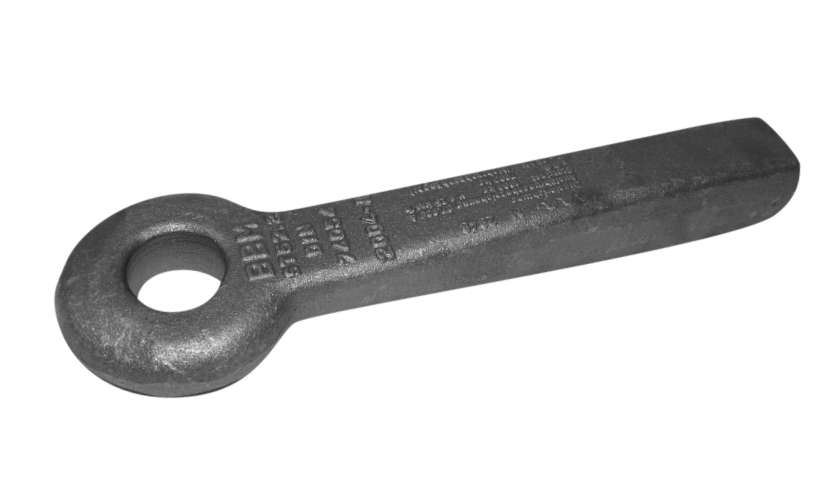

TE4C930 |
40mm |
300mm |
50mm |
50mm |
30mm |
7000kg |
1000kg |
Agricultural |

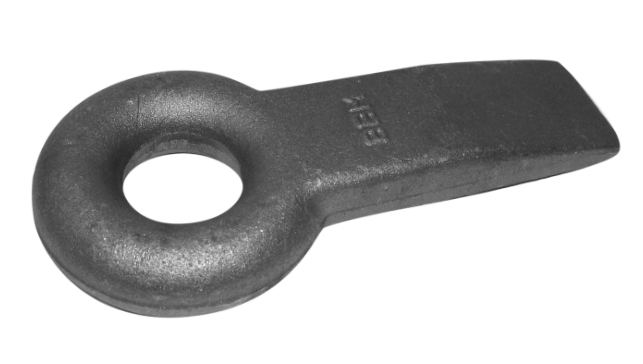

TE4C934 |
50mm |
220mm |
70mm |
15mm |
40mm |
12,000kg |
900kg |
Agricultural |
TE4C940 |
43mm |
278mm |
57mm dia |
|
30mm |
6000kg |
500kg |
Agricultural |

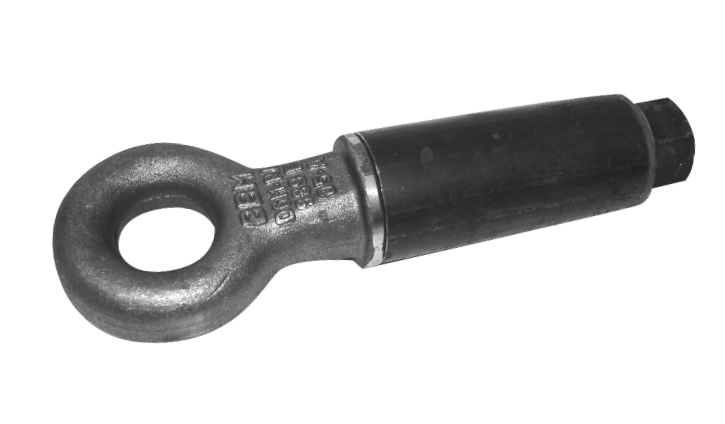

TE4C945 |
44mm |
289mm |
67mm dia |
|
37mm |
12,000kg |
500kg |
Agricultural |
