TE17B4
TE17B4P
(Blister pack)
Top quality brand
You are here:
All CM 7-pin flat plugs and sockets have the rear of the pins captured in platic preventing the pins from pushing in. All plugs and sockets also have a cable bridge that clamps the cable securely preventing cable slippage.
Top quality brand
QUALITY PRODUCT
STURDY CONSTRUCTION
COMPETITIVELY PRICED
New, stronger construction, plus screwed together, which prevents flexing or distortion.
The shroud on the plug helps protect the pins from damage.

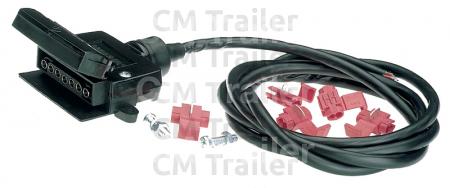

7-Pin flat socket pre-wired with 1.6mtr harness and supplied with 7 wire connectors.

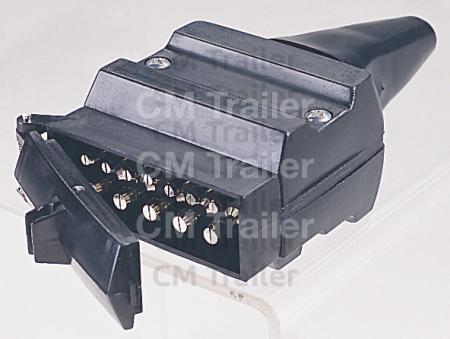

12-pin flat plastic male plug

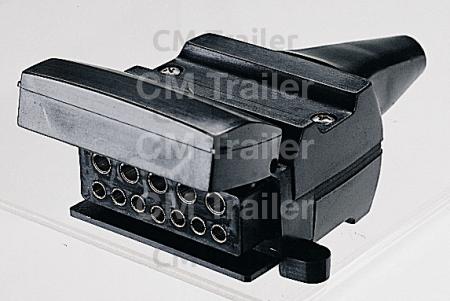

12-pin flat plastic female socket

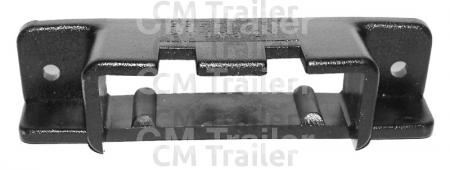

Plastic plug holder for 7-Pin flat plugs

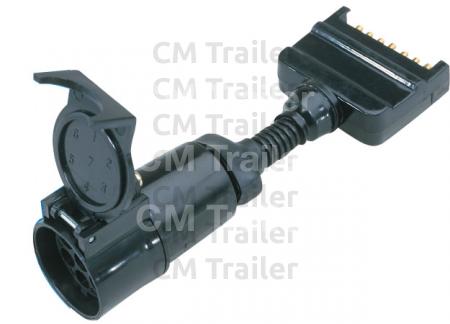

7-PIN TRAILER PLUG ADAPTOR
Connects 7-Pin round socket on vehicle to 7-pin flat plug on trailer.

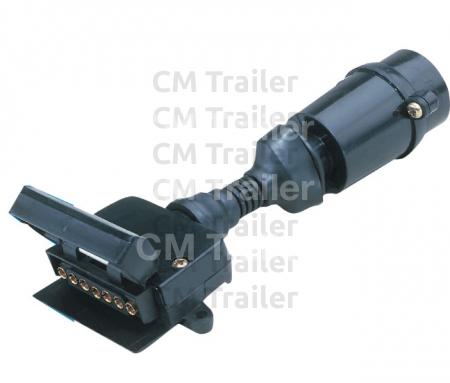

7-PIN TRAILER PLUG ADAPTOR
Connects 7-Pin flat socket on vehicle to 7-Pin round plug on trailer.
7-pin round plug to 13-pin round Euopean socket. 12 volt.
13-pin round European plug to 7-pin round socket
'Flat to flat' and 'flat to round' wiring leads are popular within the hire industry.
PART NO |
END 1 |
END 2 |
LENGTH |
TE17B4-1.0 |
7 pin B4 flat plug |
7 pin B4 flat plug |
1 metre |
TE17B4-1.5 |
7 pin B4 flat plug |
7 pin B4 flat plug |
1.5 metre |
TE17B4B7-1.0M |
7 pin B4 flat plug |
7 pin B7 round plug |
1.0 metre |
TE17B4B7-1.5M |
7 pin B4 flat plug |
7 pin B7 round plug |
1.5 metre |
The inline Harness eliminates pulse interference commonly found on modern European vehicle electrics, which interfere with LED lighting on trailers.
Simply install between the trailer connector and vehicle wiring.
In line adaptor to prevent faults and flashing caused by trailers with LED lamps.
5 amps maximum power output perchannel. 12 volts compatible only.
Can be used with bulbs as well as LEDs, however because there should be no reason to use these when the trailer has bulbs, it is not recommended.
Waterproof.
In line adaptor to prevent faults and flashing caused by trailers with LED lamps.
5 amps maximum power output perchannel. 12 volts compatible only.
Can be used with bulbs as well as LEDs, however because there should be no reason to use these when the trailer has bulbs, it is not recommended.
Waterproof.
Removes fault codes associated with LED lamps on vehicles with inbuilt bulb monitoring.
135mm (l) x 102mm (w) x 38 (h)
8 way weather-proof junction box.
Constructed of electrically insulated rubber with transparent cover for easy inspection.
4 cable entry points – can be cut to size to suit various cable diameters.
