■ For increased strength & durability, CM's 13" and 14" spoke wheels all have 5mm thick centres. 15" & 16" have 6mm thick centres. This is heavier than the industry standard.
You are here:
■ For increased strength & durability, CM's 13" and 14" spoke wheels all have 5mm thick centres. 15" & 16" have 6mm thick centres. This is heavier than the industry standard.

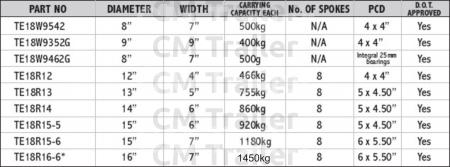

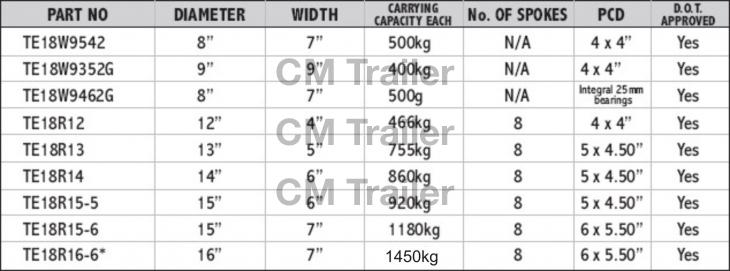

PART NO |
DIAMETER (A) |
WIDTH (B) |
C |
D |
CARRYING |
NO OF SPOKES |
PCD |
D.O.T. APPROVED |
TE18W9540 |
8” |
5.375” |
|
|
360kg |
|
4 x 4” |
Yes |

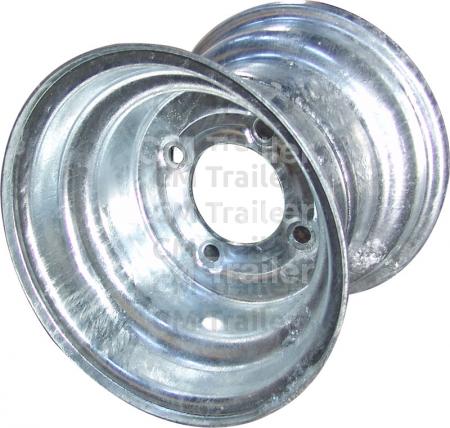

TE18W9542 |
8” |
7” |
|
|
500kg |
N/A |
4 x 4” |
Yes |
TE18W9352G |
9” |
9” |
|
|
400kg |
N/A |
4 x 4” |
Yes |
TE18W9432 |
8” |
2.50” |
|
|
500kg |
N/A |
Integral 25mm bearings |
Yes |
TE18W9442 |
8” |
3.75” |
|
|
||||
TE18W9452 |
8” |
5.50” |
|
|
||||
TE18W9462G |
8” |
7” |
|
|
||||

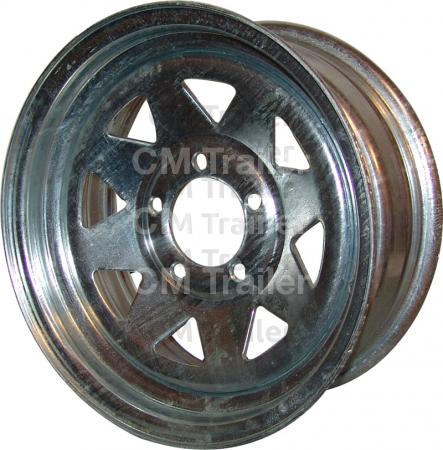

TE18R12 |
12” |
4” |
71mm |
60mm |
466kg |
8 |
4 x 4” |
Yes |
TE18R13 |
13” ■ |
5” |
84mm |
80mm |
815kg |
8 |
5 x 4.50” |
Yes |
TE18R14 |
14” ■ |
6” |
84mm |
100mm |
860kg |
8 |
5 x 4.50” |
Yes |
TE18R15-5 |
15” ■ |
6” |
84mm |
90mm |
1180kg |
8 |
5 x 4.50” |
Yes |
TE18R15-6 |
15” ■ |
7” |
110mm |
110mm |
1180kg |
8 |
6 x 5.50” |
Yes |
TE18R16-6 |
16” ■ |
6” |
110mm |
90mm |
1700kg |
8 |
6 x 5.50” |
Yes |

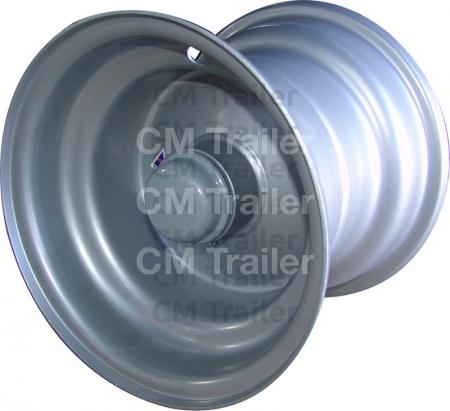

For use with integral wheels
PART NO |
AXLE DIAMETER |
BEARINGS |
TE18W9856 |
1 ¼” (31.75mm) |
6205 (25mm) |
13" X 5.5"
Supplied with chromed plastic centre cap and 1/2" UNF capped wheel nuts. Wheel & tyre assy part no: TE18W9636
14" x 6"
Supplied with chromed plastic centre cap and 1/2" UNF capped wheel nuts. Wheel & tyre assy part no: TE18W9646
14" x 6"
Supplied with chromed plastic pop-in centre cap and 1/2" UNF capped wheel nuts. Wheel & tyre assy part no: TE18W9650
14" x 6"
Supplied with chromed plastic centre cap and 1/2" UNF capped wheel nuts. Wheel & tyre assy part no: TE18W9651
14" x 6"
Supplied with chromed plastic centre cap and 1/2" UNF capped wheel nuts. Wheel & tyre assy part no: TE18W9649
PART NO |
DIAMETER (A) |
WIDTH (B) |
C |
D |
CARRYING |
No. OF SPOKES |
PCD |
D.O.T. APPROVED |

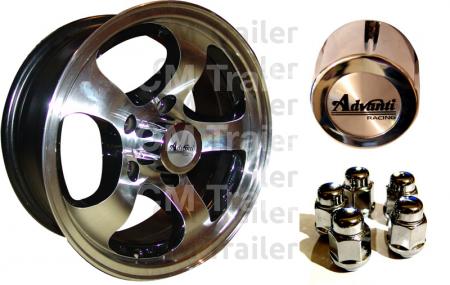

TE18RA13 |
13” |
5.5” |
80mm |
82mm |
900kg |
5 |
5 x 4.50” |
Yes |
TE18RA14 |
14” |
6” |
67mm |
85mm |
1000kg |
5 |
5 x 4.50” |
Yes |
TE18RAB 14 |
14” |
6” |
68mm |
90mm |
864kg |
5 |
5 x 4.50” |
Yes |
TE18RAD14 |
14” |
6” |
68mm |
90mm |
864kg |
5 |
5 x 4.50” |
Yes |
TE18RAE14 |
14” |
6” |
76mm |
40mm |
975kg |
5 |
4 x 4.50” |
Yes |
Wheel spacer fits:
Dimensions:
