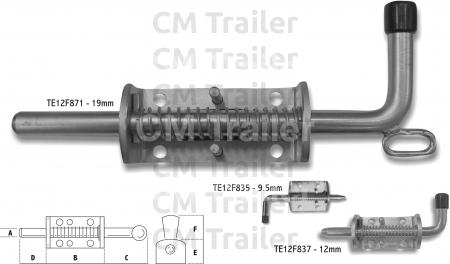

CM stock a comprehensive range of Spring Bolts used to hold small drawers shut through to the jumbo 19mm used on cattle yard gates, heavy transport applications etc. Low profile suitable for fixing to timber, aluminium or steel.
You are here:
CM stock a comprehensive range of Spring Bolts used to hold small drawers shut through to the jumbo 19mm used on cattle yard gates, heavy transport applications etc. Low profile suitable for fixing to timber, aluminium or steel.

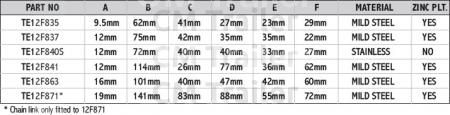

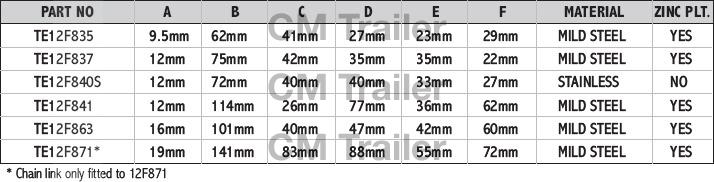

PART NO |
A |
B |
C |
D |
E |
F |
MATERIAL |
ZINC PLT. |
TE12F835 |
9.5mm |
62mm |
41mm |
50mm |
23mm |
29mm |
MILD STEEL |
YES |
TE12F837 |
12mm |
75mm |
42mm |
35mm |
35mm |
22mm |
MILD STEEL |
YES |
TE12F840S |
12mm |
72mm |
40mm |
40mm |
33mm |
27mm |
STAINLESS |
NO |
TE12F841 |
12mm |
114mm |
26mm |
77mm |
36mm |
62mm |
MILD STEEL |
YES |
TE12F863 |
16mm |
101mm |
40mm |
47mm |
42mm |
60mm |
MILD STEEL |
YES |
TE12F871 |
19mm |
127mm |
29mm |
95mm |
55mm |
72mm |
MILD STEEL |
YES |
PART NO |
SPR. BOLT |
A |
B |
THICKNESS |
FINISH |
TE12F864 |
16mm |
181mm |
75mm |
1.5mm |
GALVANISED |
|
|
|
|
|
|
