150mm Dia x 50mm wide Solid Rubber tyre
You are here:
150mm Dia x 50mm wide Solid Rubber tyre
215mm Dia x 58mm wide. Solid rubber Tyre. Die Cast Hub.
260mm Dia x 84mm Wide. Solid Tyre. Reinforced Die Cast Hub.
NEW MODEL - SAME PART NUMBER!
190mm x 75mm wheel. Nylon Hub.
215mm Dia x 58mm wide Pneumatic Tyre. Die cast hub.
Same as TE9JW14SN (above) but with a folding handle
215mm Dia x 58mm wide Solid Rubber Tyre. Die Cast Hub.
260mm Dia x 84mm Wide. Solid Tyre. Reinforced Die Cast Hub.
260mm Dia x 75mm Wide Twin Pneumatic Tyre. Reinforced Die Cast Hubs.
215mm Dia x 58mm wide Twin Solid Rubber Tyre Reinforced Die Cast Hubs
Steel Wheel
265 x 73mm
Retractable Wheel

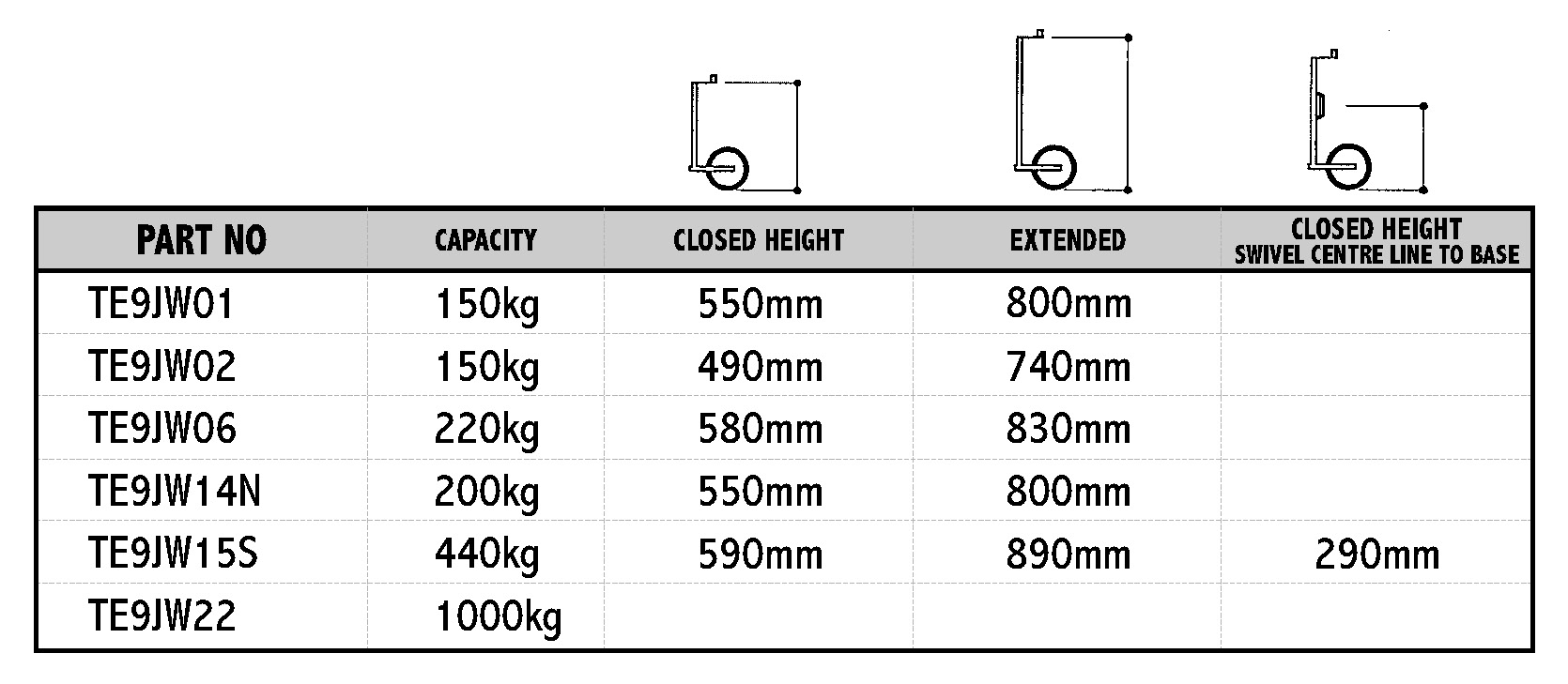

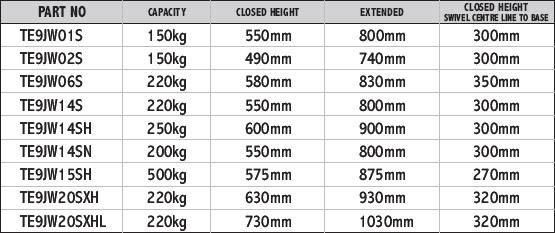

PART NO |
CAP. |
CLOSED HEIGHT (A) |
EXTEND. HEIGHT (B) |
CLOSED HEIGHT SWIVEL CENTRE LINE TO BASE (C) |
WHEEL TYPE |
|
|
|
|
|
|
TE9JW01S |
150kg |
550mm |
800mm |
300mm |
250x4 |
TE9JW02S |
150kg |
490mm |
740mm |
300mm |
150mmx75mm |
TE9JW06SH |
220kg |
580mm |
830mm |
350mm |
300x4 |
TE9JW14S |
220kg |
550mm |
800mm |
300mm |
250x4 |
TE9JW14SH |
250kg |
600mm |
900mm |
300mm |
250x4 |
TE9JW14SN |
200kg |
550mm |
800mm |
300mm |
250x4 |
TE9JW14SNF |
200kg |
550mm |
800mm |
300mm |
250x4 |
TE9JW15S |
440kg |
590mm |
890mm |
290mm |
300x4 |
TE9JW15SH |
500kg |
575mm |
875mm |
270mm |
250x4 |
TE9JW20SH |
300kg |
630mm |
930mm |
320mm |
350x4 |
TE9JW20SXHL |
220kg | 730mm | 1030mm | 320mm | 350x4 |
|
* All heavy duty wheels are fitted with: 8mm thick swivel plates and
wheel yokes for superior resistence to distortion, and large diameter
heavy walled tubing.
The retractable wheel operates on the same principle as aircraft landing wheels.
260mm Dia x 75mm Wide Pneumatic Tyre
Die Cast Hub

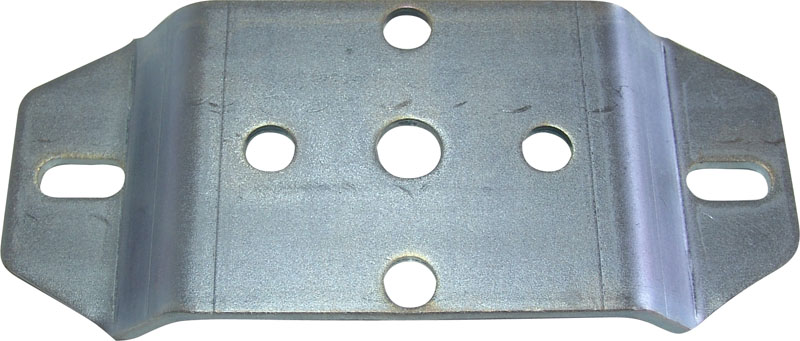

All swing up jockey wheels are supplied standard with a 2 bolt bracket.
Standard
Heavy Duty
Does not fit standard duty jockey wheels and stands.

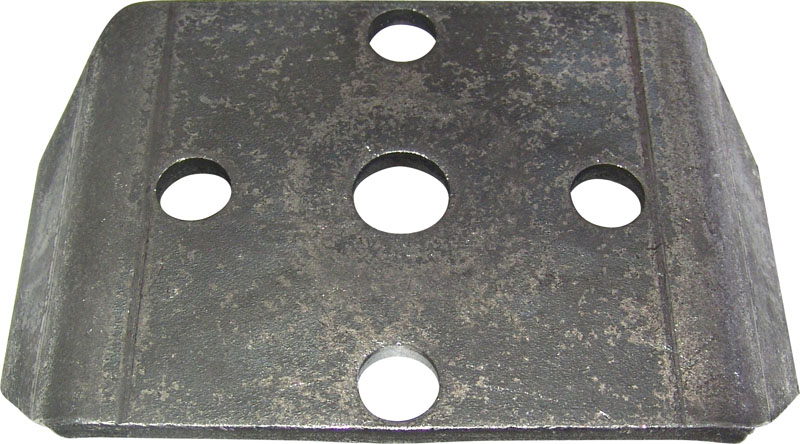

If you want to weld on a bracket prior to galvanising please request the weld on option.
Supplied separately.
Does not fit standard duty Jockey Wheels and Stands

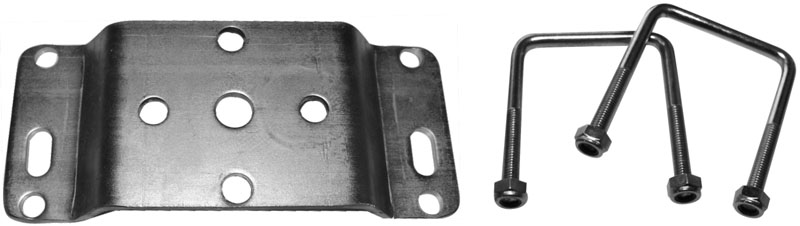

U-BOLT MOUNTING PLATE

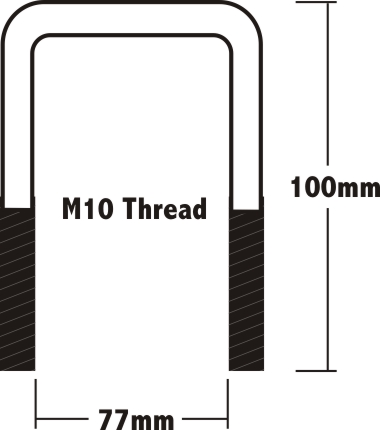

U-BOLT (2 required)
215mm Dia x 58mm wide
Solid Rubber tyre
Nylon Hub
260mm Dia x 75mm wide
Pneumatic Tyre
Reinforced Die Cast Hub
215mm Dia x 58mm wide Solid Rubber Tyre
Nylon Hub
260mm Dia x 75mm wide
Pneumatic tyre
Die Cast Hub

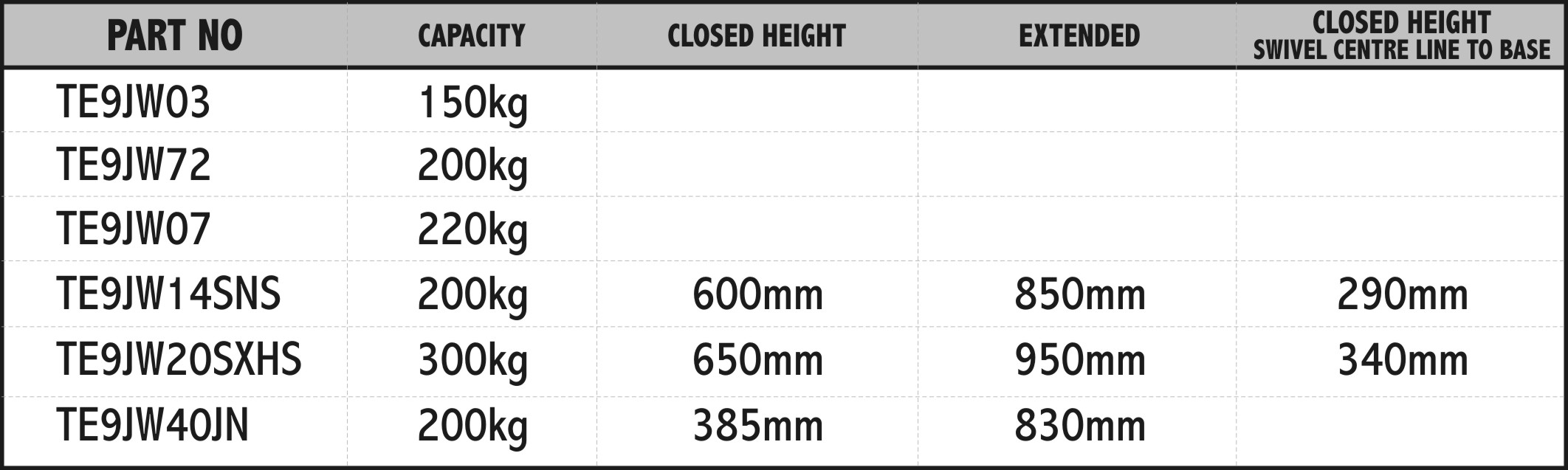

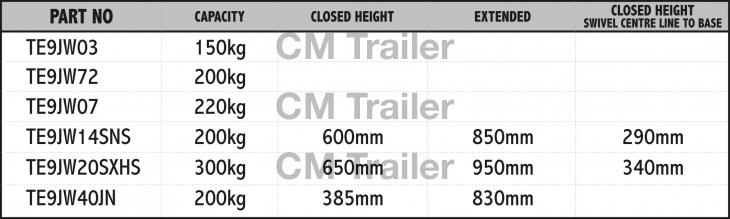

PART NO |
CAPACITY |
CLOSED HEIGHT (A) |
EXTENDED HEIGHT (B) |
CLOSED HEIGHT SWIVEL CENTRE LINE TO BASE (C) |
WHEEL TYPE |
|
|
|
|
|
|
TE9JW03 |
150kg |
|
|
|
300x4 |
TE9JW72 |
200kg |
|
|
|
250x4 |
TE9JW07 |
220kg |
|
|
|
150x50 |
TE9JW14SNS |
200kg |
600mm |
850mm |
290mm |
250x4 |
TE9JW20SXHS |
300kg |
650mm |
950mm |
340mm |
300x4 |
Four position adjustable bracket, with 250mm extension at each to a maximum height of 750mm.
750kg capacity
Magnetic, removable, side-winding handle.
Easy-pivot trailing yoke.
Dual wheel with sealed ball bearings and off-road tread.
Rust-resistant finish.
